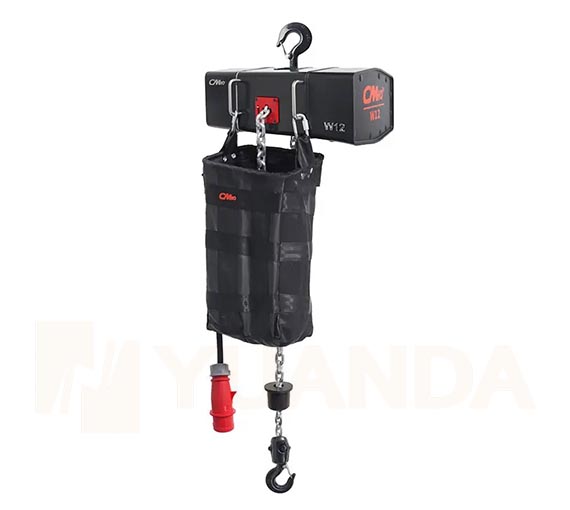

500kg Stage Electric Chain Hoist Truss Motor

Double brake Stage Hoist Motor Design

YUANDA offers fully customizable electric truss motors, hoists, clamps and chain that can easily handle stage and entertainment equipment needs from small studios and nightclubs to arenas and stadiums. Stage hoist motor is designed specifically for the touring, stage and theatre industry, ensuring safe and precise positioning of speakers, lighting systems, stage sets, scenery, etc.

Waterproof Stage Hoist Truss Motor Specification & Features

The D8+ meets all Standard SR2.0 requirements. It’s clutch, outside the load path, acts as a precise overload device; and design factor is 10:1 with a double brake installed. The D8+ certificate stage hoist is in accordance with the VPLT Code of Practice.

Item: Stage hoist system, truss motor, chain hoist for stage, electric chain hoist motor, aluminum stage truss motor hoist

Lift capacity: 500kg, 1000lbs, 1000 pound, 1/2Ton.

SWL(Safe working load): 0.5t 1/2t 1t 2t

Cable gauge: 2.5mm2, 4mm, 6mm, 3 core, 4 core, 5 core wire cable (Truck line/ Snake cable)

Amp: 16amp 32amp 16A 32A 30A plug and socke

Plugs and connectors: L21-30 female plugs, 5pin 7 pin connectors for controller, 3 wire 220v L6-30R

Controller connectors: 4, 6, 8, 10, 12, 24 circuits

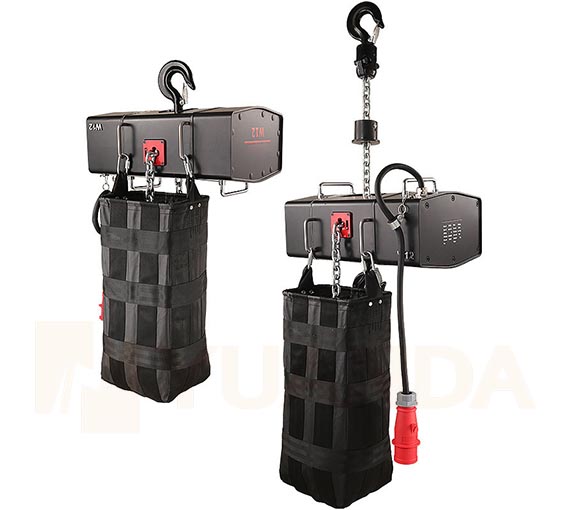

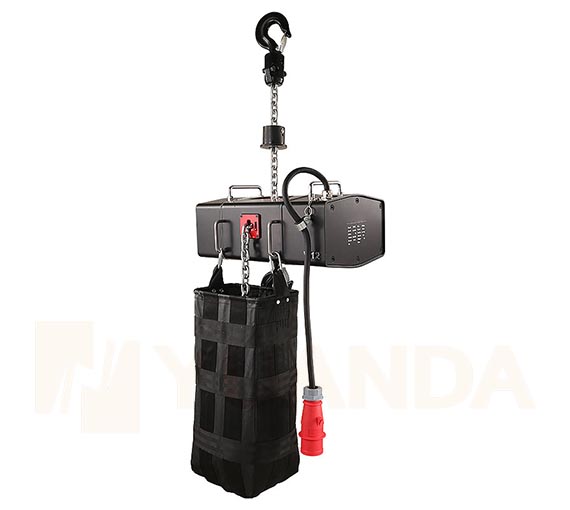

Use in climbing position, usable as stationary or climbing hoist without modification

ELECTRO-MECHANICAL DOUBLE BRAKES

Dual double electromagnetic brake

For quiet & smooth operation

68 dB OPERATIONAL NOISE

Low noise emission, a result of the Double Brake System

GEARING

Precision machined gears heat treated for strength and durability

INTERNAL CHAIN GUIDE

PVC black coated for quieter operation

Galvanized (Hot-dip galvanizing) or black phosphated load chain DAT according to DIN EN 818-7

DACROMET coating, an excellent corrosion resistant coating treatment.

PROTECTION CLASS IP54 IP55 IP56 IP65

LOW VOLTAGE CONTROL

110 Volt for long cable runs without voltage drop. 24 & 48 Volt optional.

DUTY CYCLE

H-4 duty rated for heavy duty application. 2M FEM class. 50% Duty Cycle or 300 on/off per hour.

10:1 MECHANICAL DESIGN FACTOR

14:1 LOAD CHAIN DESIGN FACTOR

Double limit switch

BUILT-IN PLC Control (Stage program electric chain hoist)

For safety function monitoring, Brake and Limit Switch integrity, Load Cell reading, Overload and Underload settings

Optionally with gear limit switch and incremental encoder as well as sturdy and ergonomic plastic handles

Electronic load measuring according to DGUV V17 standard (former DGV C1)

STAGE MOTOR HOIST STANDARD FEATURES

OVERLOAD PROTECTION

Rated operational range between 125 and 150/160%. Clutch is outside the load path when disconnected from power.

DURABLE & LIGHTWEIGHT HOUSING

Cast aluminum. Black powder coated finish for low visibility.

METRIC RATED LOAD CHAIN

G80 grade lifting chain. Zinc plated to protect against corrosion. Black phosphate finish optional.

MEETS OR EXCEEDS WORLD STANDARDS

Meets German Code of Practice VPLT SR2.0/SQPR, German Regulation BGV-C1

OPTIONAL FEATURES

CHAIN BAG

Easy-to-Mount Cloth Type Bags

CHAIN STOP

Mounted on load chain to prevent overtravel

Standard on Direct Control

WEATHER RESISTANT

A feature of the stage truss electric chain motor is waterproof, rain proof, protection class IP56. Electric hoist stage lighting is dust proof and protected against water jets. The chain hoist electric stage motors is perfectly suitable for outside use (outdoor application), even under the most arduous conditions. On open air events and concert tours, the rigging professional will appreciate the weather resistance and reliability of these electric chain motors.

The BGV-C1 Series meets the BGV-C1 German regulation for entertainment rigging. Available with fixed or variable speed, the Lodestar BGV-C1 can be adapted to reach a System Integrity Level 3 (SIL3). *

Electric Chain Hoist Stage Components & Accessaries

Stage Hoist is a light and small lifting equipment. It consists of electric motor, transmission mechanism and sprocket. The motor hoist is durable. The internal gears are all quenched at high temperatures, which increases the wear resistance and toughness of the gears.

Shell

Aluminum shell, light weight. Anti-corrosion, rust-proof.

LIMIT SWITCH

Adjustable screw limit switch that will automatically stop the hook at any predetermined point when either hoisting or lifting.

Over travel protection, lower and upper limits (factory preset)

CHAIN GUIDE

Stamped Steel guide coated for corrosion resistance and quiet operation, while keeping the load chain and liftwheel aligned.

CLUTCH

Designed to prevent lifting of excessive overloads. Located outside the gear box. Adjustable and easy to access.

BRAKE

Heavy Duty AC Brake design. New electromagnetic disk brake. Double lifting brake as standard BGV D8 D8+.

LIFT WHEEL

5 Pocket Liftwheel increases chain and liftwheel engagement while providing smoother lifting, less vibration and reduced chain wear when properly maintained.

CONTROL PANEL

Provides easy access to controls, plug & play connectors allow for quick voltage change for dual voltage motors. Fuses located on terminal strip (optional).

LOAD CHAIN

Sizes available from 1/4 in. to 5/16 in. Meets or exceeds many national and international standards. Zinc plated supplied as standard. Black phosphate finish available. 100% proof tested. Stage chain hoist with guide up and down.

Load chain in compliance with European Standard EN 818-7 (optional).

Mounting brackets

Brackets for Wide I-Beam (60-150 mm Flange base) / Pipe

Note: Unistrut Channels, I-Beams or steel pipes must be in line with the stage hoist. Please contact YUANDA for special mounting solution requirements.

Available as a kit with flight case (road case) and controller

STAGE HOIST MOTOR APPLICATIONS

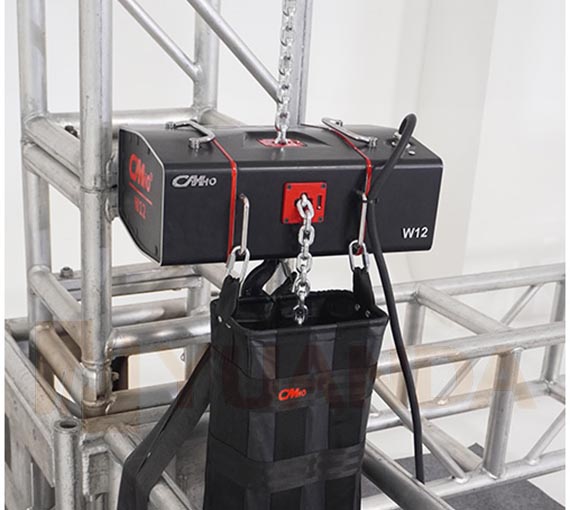

Electric chain hoist truss are used in the entertainment industry for rigging in sound, lights and securing truss systems.  You will find stage hoists in theaters, all types of arenas and sporting venues.

Exhibitions/Museums • Shopping centers • Hotels • Congress/Multipurpose Halls • Concert halls • Trade fairs • Open air events • Party-Locations • Schools • City Halls • Sports arenas • Theaters • TV-Studios • Amusement parks

How to Select The Right Type of Stage Motor Hoist?

The entertainment chain hoist is ideal for general event rigging purposes. We produce the motor hoist under strict quality control and inspection by our specialists in order to ensure a safe and efficient operation for your entertainment application. If you are unsure as to which type of stage hoist is right for you, the following factors shall be considered when selecting your electric chain hoist.

• Rated load capacity

• Outdoor or indoor application

• Lifting height/Chain length

• Type of load or material

• Working environment

• How many pieces of the stage hoist shall be worked synchronously?

• Electric Power supply: 3 phase 380V 50Hz?

• Other requirements

500KG Stage Electric Chain Hoist Truss Motor Manufacturer in China

YUANDA is a leading electric stage hoist manufacturer in China, supplying various of hoisting equipment for the stage and entertainment industry to our distributors and directly to end users both in China and overseas. We ship the electric hoist for concert stage all over the world including the United States, Canada, Indonesia, Mexico, Chile, Peru, UAE, Middle East, the United Kingdom, EU, and more.

Contact us now for stage truss motor hoist price.
