Telescopic Gantry Crane
Telescoping gantry crane is an adjustable height gantry crane, which is designed to have variable dimensions to suit different working environments in the shops. This telescoping gantry crane is a great option in your workshop when you need a portable crane that can have the height adjusted.
Span(Width): 3m 4m 5m 6m 8m 10m 12m 15m 25ft
Lift height: 2~12m.
Lifting capacity: 0.25ton 0.5ton 1 2 3 5 7.5 8 10 ton
Movement mode: Hand push, trackless or travel by motorized wheels
Control method: Pendant wire control or wireless remote control
Working duty: A3, A4
Ambient temperature:-20~40℃
Telescopic gantry crane price: $5000~$20,000
Telescopic Gantry Crane
Telescopic Steel Gantry Crane Design
The telescopic gantry crane provides an adjustable mechanism for raising and lowering the beam to suit specific clearance requirements.
Crane height adjustments: Adjusting in 6-inch increments, height adjustment kits use spring-loaded steel locking pins that automatically engage when height positioning holes are reached; The height adjustment of the small mobile gantry crane is very useful during operation when there are overhead obstructions or the crane has to move through doorways.
The manual winch are provided as standard equipment with all YUANDA mobile portable telescopic a frame gantry cranes. Telescopic mobile gantry cranes are available with capacities up to 10 tons, spans to 30 feet and maximum under boom heights to 25 feet.
PT1 Fixed Height Gantry Crane PT2 Adjustable Height Gantry Crane PT3 Motorized Gantry Crane
LT1 Fixed Height Aluminum Gantry Crane LT2 Adjustable Height LT3 Adjustable Height and Span Crane
LT4 Light Aluminum Gantry Crane LT5 Foldable Aluminum Gantry Crane LT6 Heavy Duty Aluminum Crane
Telescopic Gantry Crane Specification & Features
Capacity: 250kg 500kg 1000kg 1500kg 2000kg 5000kg
Loading weight: 500 pound, 1000lbs, 2000lbs,3000lbs, 4000lbs 5000lbs,6000lbs,8000lbs
SWL: 0.5t 1t 2t 3t 5t 7.5t 8t 10t 12t 15t 16t 20t
All steel construction.
Small size, lightweight, light duty
Movable on heavy duty durable locking castor wheels with brake
Complies with CE Standards
Telescopic Gantry Crane Options Available
Fixed height gantry crane or telescopic type height adjustable gantry crane can be built to order
Adjustable height and span
Height adjustment mode: Height adjusted by manual winch, by manual turbine worm gear, or height electric automatically adjusted by remote/wire control.
Height adjustable aluminum gantry crane
Electric chain hoist or wire rope hoist (Motorized or manual)
Manual or electric trolley (Hoist travel)
Electric driven motorized crane travel (Motor rubber wheels)
V-Groove Track
SEW Motor, Schneider Electric
Custom paint color or hot dip galvanized or stainless steel or light aluminum alloy
Site installation available
1 Ton Capacity Telescoping Shop Gantry Crane

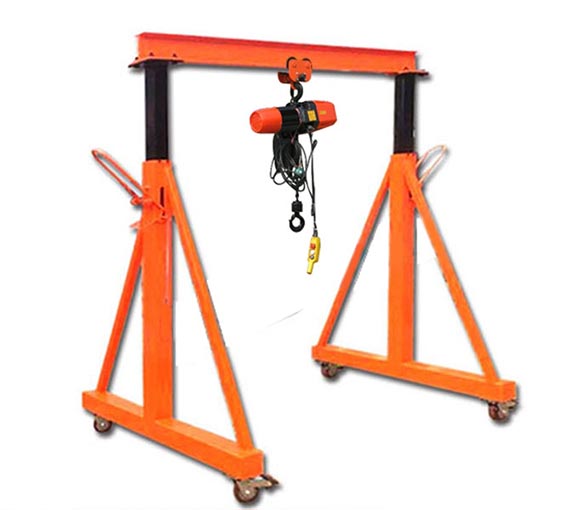

2 Ton Small Portable Height Adjustable Telescopic Gantry Crane

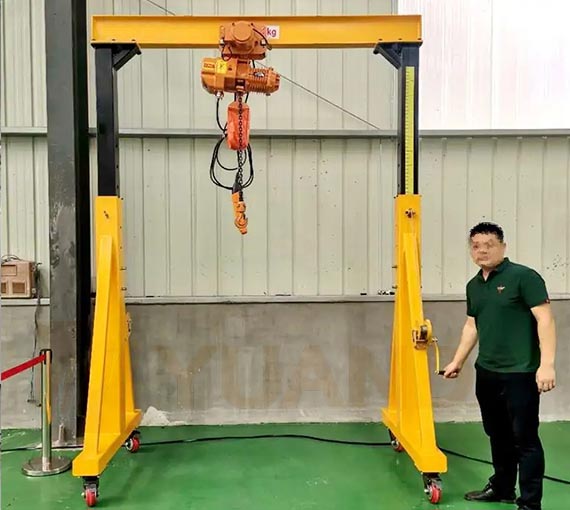

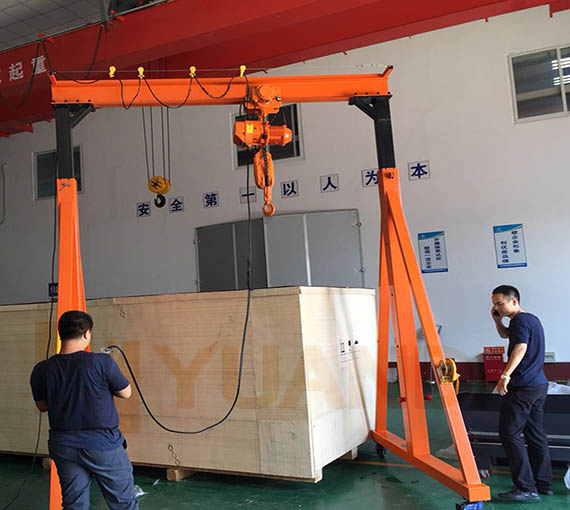

10 Ton Height Adjustable Telescoping Electric Hoist Steel Gantry Crane

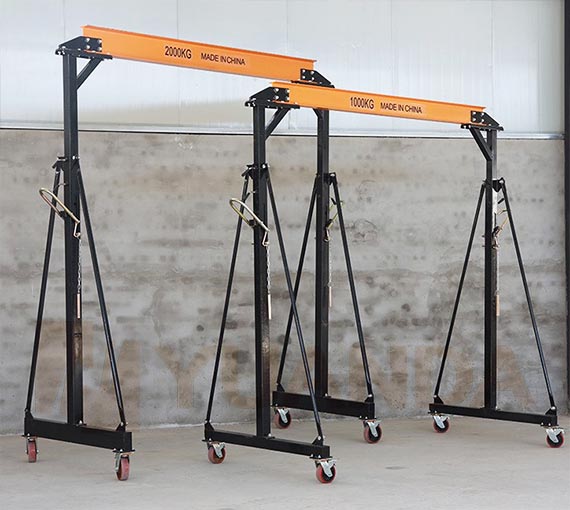

2000 LBS Pounds Mobile A Frame Portable Telescopic Shop Gantry Crane with Manual Winch

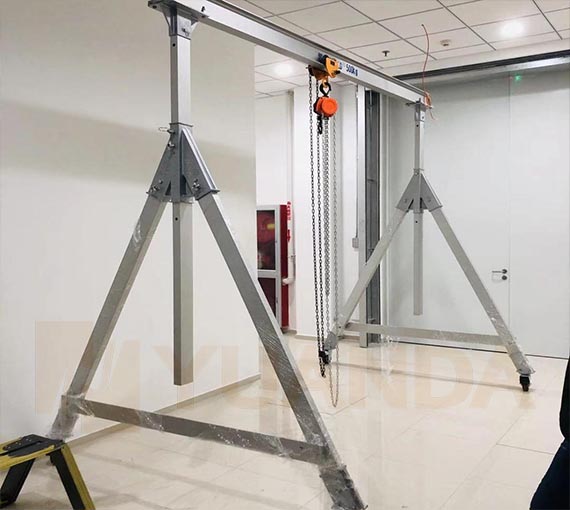

500kg1000kg Light Weight Telescopic Aluminum Gantry Crane
Technical Parameter of Telescopic Gantry Crane
Item | Portable Steel Telescoping Gantry Crane | |||||
Capacity(Ton) | 0.5 ton | 1 ton | 2 ton | 3 ton | 5 ton | 10 ton |
Span(m) | 2-12m (as you require) | |||||
Lifting height(m) | 1-10m (as you require) | |||||
Total height(m) | 1-15m (as you require) | |||||
Wheel | 4 | |||||
Lifting equipment | Manual / Electric chain hoist or wire rope hoist | |||||
Power voltage | 380V 50HZ 3P or customized | |||||
Height Adjustable Telescoping Gantry Crane Manufacturer in China
YUANDA is a leading China manufacturer of telescopic gantry cranes, supplying various of crane and hoist lifting systems to our distributors and directly to end users both in China and overseas. We ship all over the world including the United States, Canada, Indonesia, Mexico, Chile, Peru, UAE, Middle East, the United Kingdom, EU, and more. All our portable gantry cranes are CE certified.
Telescoping gantry crane design drawings can also be provided by our technical team. Contact us now for telescoping gantry crane price.
